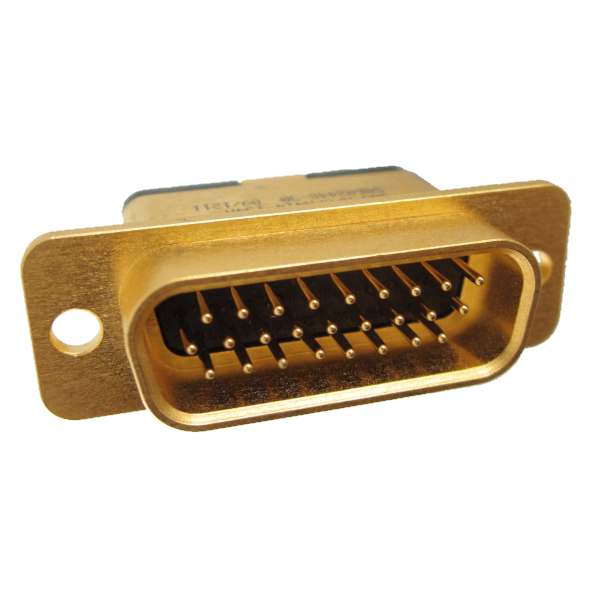

The 308 series of planar ceramic filter D-Sub connectors complements the 481 series product offering and provides the following features:
• smaller physical size then 481 series
• more cost effective for high volume applications
• fully tooled in medium and high density arrangements
• solderless stress-isolated design

The 308 series connectors have been extensively qualified per the requirements of MIL–C–24308. All products shipped re c e i ve the fo l l ow i n g inspection tests:
• 100% visual and mechanical inspection
• 100% capacitance, dielectric withstanding voltage, insulation resistance and dissipation factor testing
• sample insertion loss testing (AQL 1.0%)

For high reliability applications , the following inspection tests or certifications are also available:
• thermal shock
• elevated temperature voltage conditioning
• e l evated temperature insulation resistance and capacitance
• outgassing per JSC–SPR–0022 for space borne applications
• baseline and single lot date code manufacturing
• other tests as required (consult the factory)
