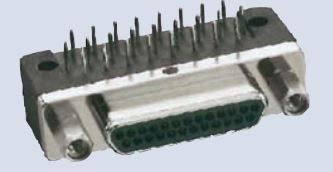

  • D-Micro-PCB
Available in sizes 9 thru 100, straight and right angle PCB termination. Solid copper 24 AWG PCB leads, tin plated, and solder dipped. Wide selection of hardware options. Consult factory for other wire size termination.

Modify Configuration

Reset Cancel View Results
Item #
Connector Series
  • 100 - Metal Shell per M83513
  • 102 - All Plastic (dim. Identical to metal shell per M83513)
  • 104 - Stainless Steel (dim. Identical to metal shell per M83513
  • 107 - Micro-D PCB O-Ring Series
Insulator Material
Shell Finish
RoHS Compliant
Connector Size
Connector Size Image
Connector Type
P - Plug (Pin) S - Receptacle (Socket)
Termination Type
Hardware
Threaded Insert
  • None
  • T - Threaded Insert
Lead Length [inches]
  • 1 - 0.109"
  • 2 - 0.140"
  • 3 - 0.172"
  • 4 - 0.250"
  • F - Non Std. Length
Lead Note
