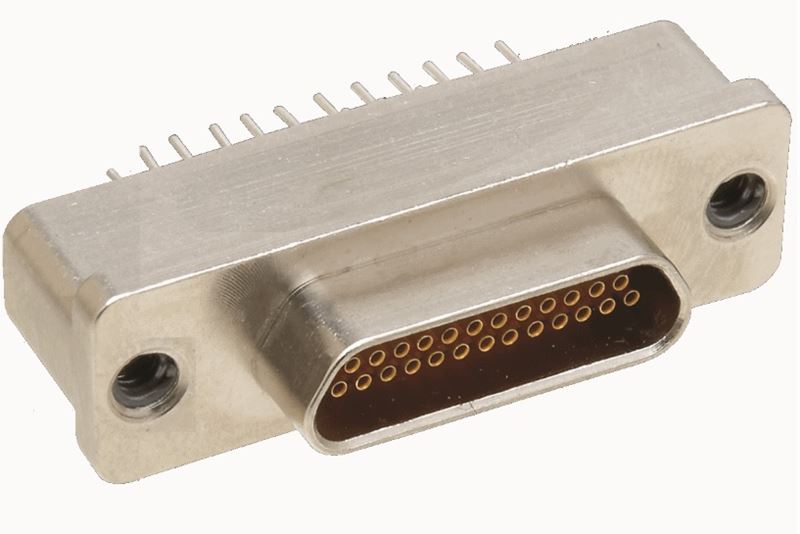

Amphenol Canada's M13 connector series is a range of filtered MIL-DTL-83513 Micro-D products for military and aerospace applications.These extremely small filter connectors employ monolithic planar capacitors in a rugged, high density package ideally suited for applications where space and weight is restricted. Available in a vaiety of filter types and mechanical configurations including wired harnesses and PCB terminations. The M13 series are fully intermateable with all standard MIL-DTL-83513 connectors and meet the applicable performance and environmental requirements.

Modify Configuration

Reset Cancel View Results
Item #
Connector Series
Connector Size
Connector Size Image
Connector Type
P - Plug (Pin) S - Receptacle (Socket)
Termination Type
  • 1 - Vertical PCB "BS"
  • 2 - Vertical PCB "C6"
  • 3 - Solder Cup
  • 4 - Right Angle PCB "CBR"
  • 5 - Solid Wire Straight
  • 6 - Stranded Wire
Wire/Lead Length
  • 1 - 0.109
  • 2 - 0.140
  • 3 - 0.172
  • 4 - 0.25
Mounting Hardware
A - 0.093" Diameter Mounting Hole B - 0.125" Diameter Mounting Hole
L - Jackpost (Loose) P - Jackpost (Fixed)
Insert Option
None T - Threaded Insert
Filter Type
  • 0 - Non-filtered Equivalent Part
  • C - C-Filter
  • P - Pi-Filter
Filter Value
Plating
  • 1 - Electroless Nickel
  • 2 - Tin
  • 3 - Cadmium (Clear Chromate)
  • 4 - Gold
  • 5 - Zn Ni
RoHS Compliant
Yes No
Deviation
Deviation Note
